Steel sheet piles

Steel sheet piles are often used in the process of temporary structures such as soil and sand collapse prevention boards, temporary revetments, cofferdam projects, closures, and temporary central islands. During the construction process, they can achieve the role of foundation pit support in the construction process. Steel sheet pile is a kind of section steel with lock. Its section has straight plate shape, groove shape and Z shape, etc., and there are various sizes and interlocking forms. The common ones are Larson type, Lackawanna type and so on.

The construction has a significant environmental protection effect, greatly reducing the amount of soil and concrete used, effectively protecting land resources The timeliness of disaster relief and rescue is strong, such as flood control, landslides, subsidence, quicksand, etc.

Steel sheet pile support When the foundation pit is deep and the groundwater level is high and there is no precipitation during construction, sheet piles are used as the supporting structure, which can not only retain soil, waterproof, but also prevent the occurrence of quicksand. Sheet pile supports can be divided into sheet piles without anchors (suspended pipe sheet piles) and sheet piles with anchors. The commonly used steel sheet piles are U-shaped steel sheet piles, also known as Larsen steel sheet piles.

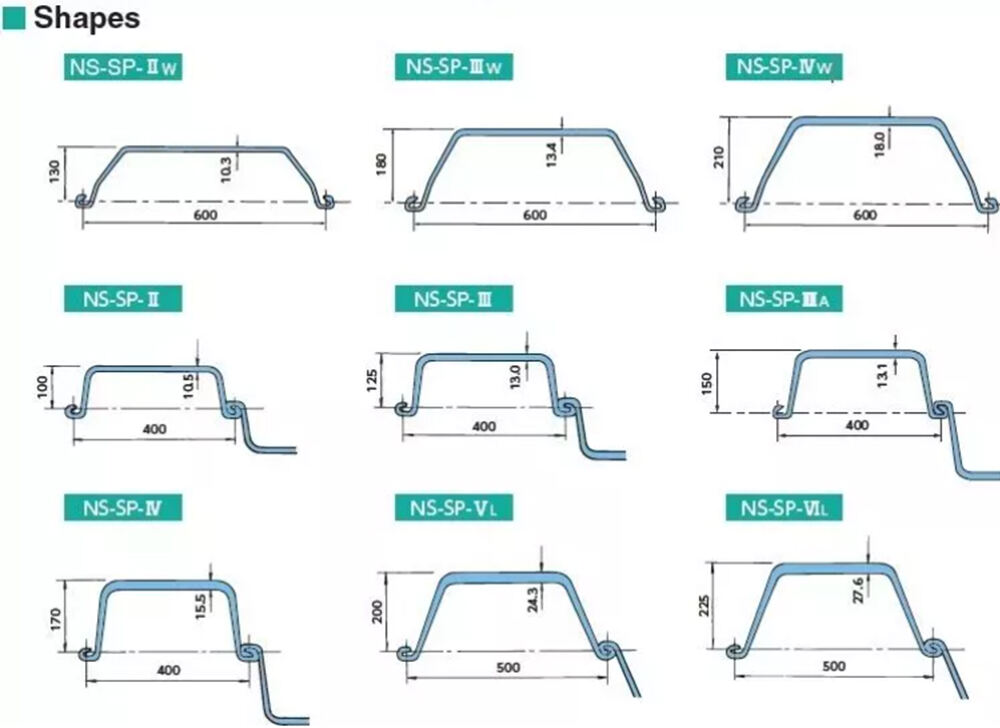

ProductParameter

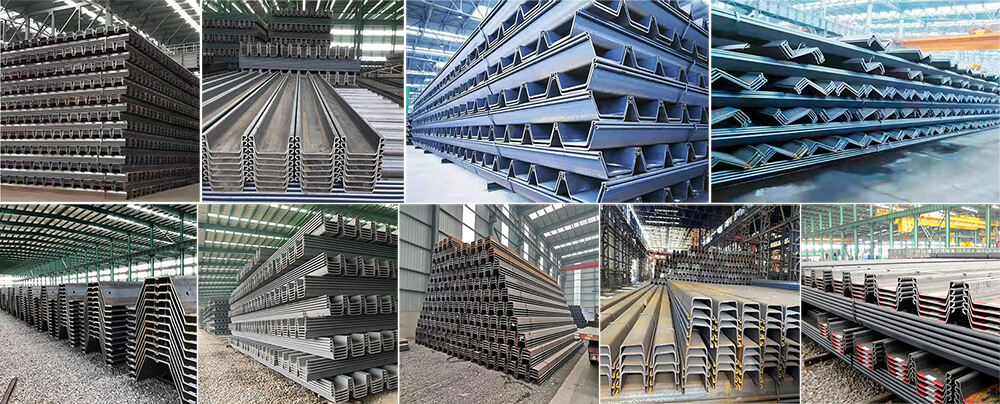

Product Show

Steel sheet piles are long structural sections with a vertical interlocking system that creates a continuous wall. The walling is widely constructed to retain either soil or water in a particular portion or side. The capacity of the sheet pile to perform is dependent upon its geometry and the soil where is it piled.

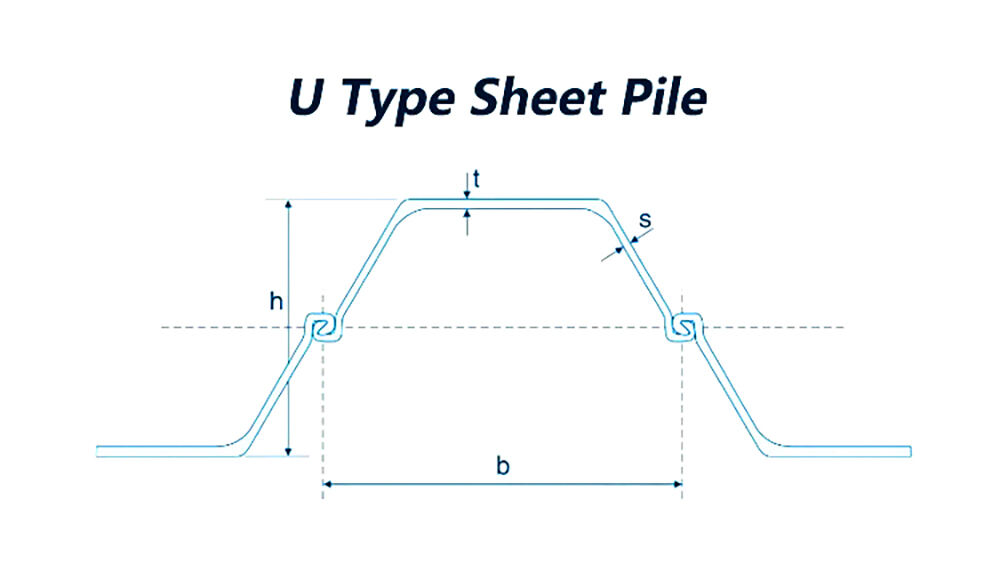

1. U-type steel sheet pile：

U steel sheet pile is most common sheet pile with obvious features such as :high intensity, water-proof property and so on. In bridge construction, u steel sheet pile has gradually played an important role.

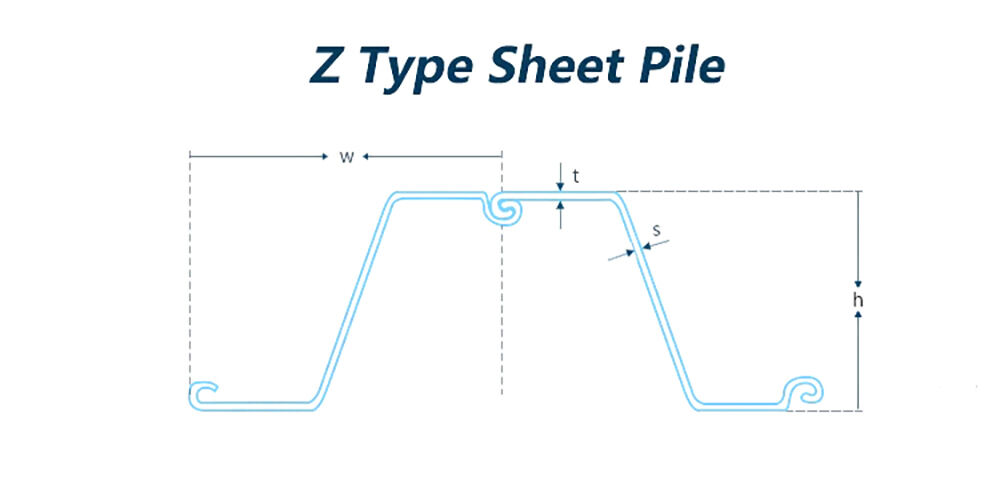

2. Z-type steel sheet pile：

Compared to U type sheet piles, Z sheet pile could provide a larger section modulus with lower material cost (lower weight), which is much more economic than traditional U sheet piles. One advantage of Z sheet pile is that during installation, the flange of the pile will be on the same line, which will be very convenient for the installation of waling beams.

product features

① U Type Steel Sheet Pile

1:Abundant specifications and models.

2:The symmetrical structure is conductive to repeated use.

3:The length can be customized according to customized according to customized according to customer requirements,which brings convenience to construction and reduces cost.

4:Convenient production,short production design and production cycle.

② Z Type Steel Sheet Pile

1:Flexible design,a relatively high section modulus and mass ratio.

2:The stiffness of sheet pile wall is increased to reduce the

displacement and deformation.

3:Large width,effectively save the time of hoisting and piling.

4:With the increase of section width,the water stop performance is improved.

5:More excellent corrosion resistance.

Our Advantages :

1. We can produce all types of sheet piles,pipe piles and accessories,we can adjust our machines to produce in any width x height x thickness .

2. We can produce single length up to over 100m,and we can do all painting,cutting,welding etc fabrications in factory .

3. Fully internationally certified:ISO9001,ISO14001,ISO18001,CE,SGS,BV etc..

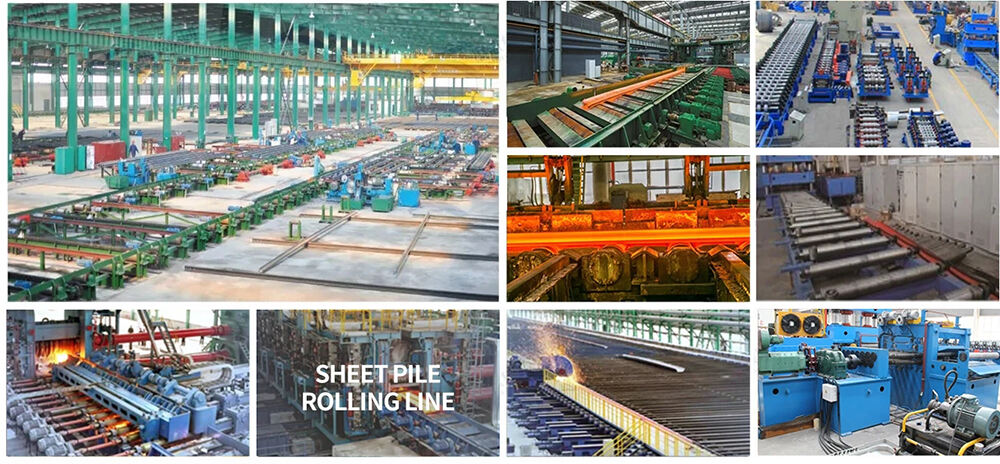

Steel sheet pile manufacturing process:

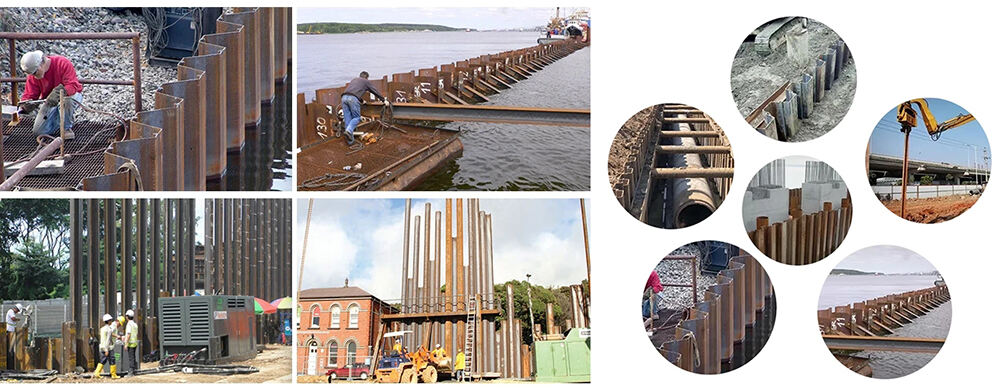

Application

(1) River bank protection and flood control.

(2) Ports and wharfs.

(3) Water catching station.

(4) Bridge piers.

(5) Road widening retaining wall.

(6) BASEMENT.

(7) Underground garage.

(8) Isolation facilities.

(9) Load-bearing foundation.

(10) Temporary works.

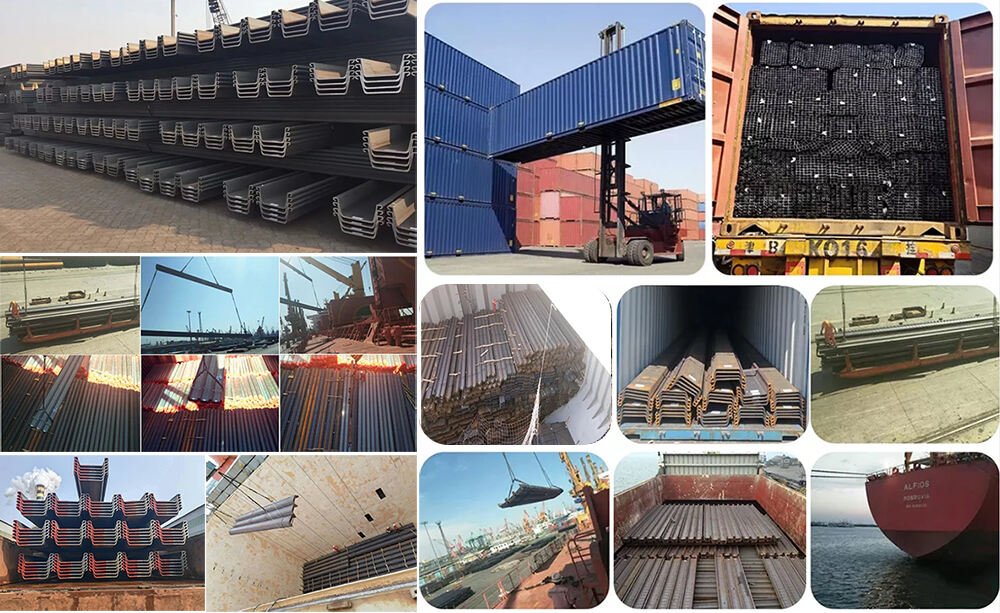

Packing & Delivery

Packing:

1:Generally package:Anti-water paper+strapped with min three strapping strips.

2:Standard exporting package:Anti-water paper and plastic+covered by iron sheet+strapped with min three strapping strips.

3:Excellent package:Anti-water paper and plastic film+covered by iron sheet+strapped with min three strapping strips+fixed on the iron or wooden pallets by strapping strips.

Shipping:

1:Shipping by containers

2:Shipping by bulk ship

According to customer requirements

Customer Feedback

FAQ

Q: Will you delivery the goods on time?

A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.

Q: Do you provide samples ? is it free or extra ?

A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.

Q: Do you accept the third party inspection?

A: Yes absolutely we accept.

Q: How could you guarantee your products?

A: Each piece of products is manufactured by certified workshops, inspected by RUNHAI piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.

Q: How do we trust your company?

A: We specialise in steel business for years, headquarter locates in Jinan, Shandong province, you are welcome to investigate in any ways, by all means, you could place an order with trade assurance which could secure your payment.

Q: How can I get your quotation as soon as possible?

A: The email and fax will be checked within 24 hours,meanwhile,the Facebook,Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
