Aluminum plate sheet
Aluminum plate is the thickness of more than 0.2mm to 500mm below,200mm width, length within 16m of the aluminum material is called aluminum sheet or aluminum sheet,0.2mm below for aluminum,200mm width for platoon or strip (of course, with the progress of large equipment, the widest can do 600mm aluminum plate is also more).
Aluminum plate refers to the rectangular plate processed by aluminum ingot rolling, which is divided into pure aluminum plate, alloy aluminum plate, thin aluminum plate, medium thickness aluminum plate, pattern aluminum plate.
Description
Aluminum plate is the thickness of more than 0.2mm to 500mm below,200mm width, length within 16m of the aluminum material is called aluminum sheet or aluminum sheet,0.2mm below for aluminum,200mm width for platoon or strip (of course, with the progress of large equipment, the widest can do 600mm aluminum plate is also more).
Aluminum plate refers to the rectangular plate processed by aluminum ingot rolling, which is divided into pure aluminum plate, alloy aluminum plate, thin aluminum plate, medium thickness aluminum plate, pattern aluminum plate.
Product Parameter:
| Preduct name | Aluminum Seet/Plate |
| Materal Grade | Hot Sales: 1060, 1100, 2024, 3003, 3004, 3105, 4043, 4047, 5005, 551,5052,5053,5056,5058, 5251, 5454,5754,6061,6063,6082,1000 Seres: 1060,1050,1100,10702000 Seres:2024,2A12,2017,2014.2A11.2A1430003003,3004,3105,3104,3A21,3005,3M035000 Seres: 5052,5083,5182,5754,5A03,5454, 5A06, 5005,5252,5086, 5A02,5A0S,5052A,5059,50528,5852,58496000 Seres:6061,6063.6082,6005,6101,6060.6005A7000 Senes:7973 |
| tandard | ASTM B209. JIS H4000-2006, GB/T 3190-2008,GB/T 3880-2006 etc |
| Temper | H111 H112 H116/H321 H12/H22/H32 H14/H24/H34/H16/H26/H36 H1B/H28/H38 H114/H194,etc |
| Surface | Wire drawing.modation,PS,Mirror surface,Embossing etc |
| Thickness | 0.15-200mm or as required |
| width | 800-2200mm or as required |
| Length | 1-16m or as required |
| Tolerance | *1% |
| MOQ | 25 tons |
| Certification | CE,ISO,SOS,ETC |
| Payment | TULC,ETC |
| dellvery time | Usualy 7 days,depending on the quantty |
| Package | Standard seaworthy package or as the customer's requirements. |
| Application | Building.Decoration,/Curtain Wall,Roofing,Mould,Ligheng,curtain wall,ship buldingArcraft,Ol Tank,Truck Body etc |
| Application | |
| 1000 series | 1000 series aluminum plate is widely used in roofing sheet,road signs, billboards, chemicalequipment, inland river ship equipment,All kinds of containers (wine tank,pressure tank,tea stove, etc.), conductive materials, chemical equipment,instruments and meters,signs(set Spare signs, road signs, vehicle license plates, etc.), building decoration materials andother fields.Spare signs, road signs, vehicle license plates, etc.),building decorationmaterials and other fields. |
| 3000 series | 3000 Series aluminum plates are used for cans, building toolsvarious lamp parts,groovesand tanks for transporting liquid products, various pressure vessels and pipes processedby thin plates. |
| 5000 series | 5000 series aluminum plate is used for njection into ships where high corrosion resistance,good weldability and moderate strength are required. Automotive and aircraft plate welds;Pressure vessels, refrigeration units, television towers, drilling equipment requiring seriousfire protection, oil tank truck, iTransportation equipment,missile components, armor,etc. |
| 6000 series | 6000 series aluminum plate used for truck, tower building, ship, trolley, furniture and othertubes,rods,profiles. |
| 7000 series | The 7000 series is used for aircraft, military equipment, armordeck,missile installation,etc. |
| Grade | si | Fe | Cu | Mn | Mg | Cr | NI | Zn | AI |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 99.5 | ||
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 99.6 | ||
| 1070 | 0.2 | 0.25 | 0.04 | 0.Q3 | 0.03 | 0.04 | 99.7 | ||
| 1100 | Si+Fe:0.95 | 0.05-0.2 | 0.05 | 0.1 | 99 | ||||
| 1200 | Si+Fe:1.00 | 0.05 | 0.05 | 0.1 | 0.05 | 99 | |||
| 1235 | Si+Fe:0.65 | 0.05 | 0.05 | 0.05 | 0.1 | 0.06 | 99.35 | ||
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | 0.1 | remains | |||
| 3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | 0.25 | remains | ||
| 3005 | 0.6 | 0.7 | 0.25 | 1.0-1.5 | 0.20-0.6 | 0.1 | 0.25 | remains | |
| 3105 | 0.6 | 0.7 | 0.3 | 0.30-0.8 | 0.20-0.8 | 0.2 | 0.4 | remains | |
| 3A21 | 0.6 | [0.7 | 0.2 | 1.0-1.6 | 0.05 | 0.1 | remains | ||
| 5005 | 0.3 | [0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | remains | |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | remains | |
| 5083 | 0.4 | 0.4 | 0.1 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 | remains | |
| 5154 | 0.25 | 0.4 | 0.1 | 0.1 | 3.1-3.9 | 0.15-0.35 | 0.2 | remains | |
| 5182 | 0.2 | 0.35 | 0.15 | 0.20-0.50 | 4.0-5.0 | o.i | 0.25 | remains | |
| 5251 | 0.4 | 0.5 | 0.15 | 0.1-Q.5 | 1.7-2.4 | 0.15 | 0.15 | remains | |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | remains |
| LUMINUM | Grade | Normal | Temper | TensileStrength | YieldStrength | Elongation% | BrinellHardness | |
| ALLOY | Temper | N/mm | N/mm | Plate | Bar | HB | ||
| 1XXX | 1050 | O,H112,H | O | 78 | 34 | 40 | - | 20 |
| 1060 | O,H112,H | O | 70 | 30 | 43 | - | 19 | |
| Al-Cu | 2019 | O,T3,T4,T6,T8 | T851 | 450 | 350 | 10 | - | - |
| (2XXX) | 2024 | O,T4 | T4 | 470 | 325 | 20 | 17 | 120 |
| Al-Mn | 3003 | O | 110 | 40 | 30 | 37 | 28 | |
| (3XXX) | 3004 | O,H112,H | O | 180 | 70 | 20 | 22 | 45 |
| AI-Si(4XXX) | 4032 | O,T6,T62 | T6 | 380 | 315 | - | 9 | 120 |
| Al-Mg | 5052 | O,H112,H | H34 | 260 | 215 | 10 | 12 | 68 |
| (5XXX) | 5083 | O,H112,H | 0 | 290 | 145 | - | 20 | - |
| Al-Mg-Si | 6061 | O,T4,T6,T8 | T6 | 310 | 275 | 12 | 15 | 95 |
| (6XXX) | 6063 | O,T1,T5,T6,T8 | T5 | 185 | 145 | 12 | - | 60 |
| Al-Zn-Mg | 7003 | T5 | T5 | 315 | 255 | 15 | - | 85 |
| (7XXX) | 7075 | 0,T6 | T6 | 570 | 505 | 11 | 9 | 150 |
Product Show：
Aluminum Color Coated Coils
1) Alloy: 1050, 1060, 1100, 3003, 3004, 3005, 3105, 5005, 5052, 5083, 5754
2) Temper: Various status
3) Thickness: 1.0-4.0mm
4) Width: 50-2300mm
5) Weight: 2.0-2.5 tons per pallet
6) Length: 1000-6000mm
7) Frontispiece Painting: PVDF & PE (Brand: PPG)
8) Frontispiece guarantee: Coating guarantee for 20 years.
9) The Thickness of the Baffle Paint: The thickness of paint coating is 30u.
10) Face Slab For Film: Adopt PVC film, thickness for standard is 60u (can be negotiated if the client need higher thickness)
11) Color Requirements: Could according to the color board of color number of the client offer.
12) Gloss Requirements: Could do it from 20% to 60% according to the gloss request of the client
13) Dimensions and weight can be produced according to clients' specifications.
14) Applications: construction, decoration, air-conditioner and radiators,package
① Pure Aluminum(1000 series)
The 1000 Series Is Industrial Aluminum.Representative Products Such As 1050 And 1100.1200(purity 99.0%) With A Purity Of 99.5% Are AddedWith Trace Amounts Of Fe And S According ToThe Characteristics.The Better The PerformanceIn Terms Of Workability. Corrosion Resistance.Weldability. Electrical Conductivity. And ThermalConductivity..Can Be Used For Containers AndHeat Dissipation Materials.
② AL-CU Series Alloy (2000 series)
The 2017 Series 2024 Series, Which Is FamousFor Duralumin And Hard Molybdenum.Is Represented By Its Superior Strength And Cutting Per-formance.However, Due To The High Content OfCu And Poor Cortosion Resistance.It Needs ToBe Carried Out In A Corrosive Environment.Anti-corrosion Treatment Axial Aviation Equipment Mechanical Parts And Construction Materials
③ AL-MN Series Alloy (3000 series)
While Not Reducing The Workability And Corrosion Resistance Of Pure Aluminum.The AllovMade By Improving Its Strength, RepresentedBy 3003 And 3004.Is Widelv Used In AluminumAnd Other Containers And Residential ExteriorHydraulic Repairs.
④ AL-SI Series Alloy (4000 series)
4043Is Characterized By Its Low MeltingPoint And Is Used In Wax Materials AndBuildina Panels.In Addition. The Addition OfCu. Ni. And Mg lmproves Heat Resistance.Such As Alloy 4032 With Strong Wear Resistance
⑤ AL-MG Series Alloy (5000 series)
Products With Less Mg Content (mg0.5-1.1%)Can Be Used For Decoration Materials.AndProducts With More Mg Content (mg22-5%)Can Be Used For Can Cover Materials AndBuilding Materials.This Series Of Alloys Has AStrong Ability To Deal With Environmental Pol-lution Such As Seawater Or Industrial Zones.And There Is No Need For Anti-corrosion Surface Treatment In Actual Use
⑥ AL-MG Series Alloy (6000 series)
This Series Of Alloys Are Superior In StrengthAnd Corrosion Resistance, And Are MostlyUsed As Building Materials.In Addition, 6063Is Used As A Pressed Profile For Building Doors And Windows.
⑦ AL-ZN-MG Series Alloy (7000 series)
Aluminum Alloys Are Roughly Divided IntoHigh-strength A-zn-mg-cu Series And WeldingConstruction Alloy A-zn-mg Series.Al-zn-g-cu7075 Is Used As Super Duralumin, Which CanBe Used For Air Equipment And SportingGoods.In Addition, The A-zn-mg System HasHigher Strength And Can Be Heat TreatedThis Type Of Metal Can Be Used As MaterialsFor Manufacturing Vehicles Such As The Shinkansen.
Product Advantage:
① Dominant performanceLight weight, good rigidity and high strength3.0mm thick aluminum plate weighs 8kg persquare, and the tensile strength is100-280n/mm2.
② Corrosion resistanceGood weather resistance and corrosionresistance.PVDF fluorocarbon paint based onkynar-500 and hylur500 can last for 25years without legs.
③ Good craftsmanshipUsing the process of processing first andthen painting, the aluminum plate can beprocessed into various complex geometrishapes such as planes, arcs, and spheres.
④ Color diversityUniform coating and various colorsThe advanced electrostatic sprayingtechnology makes the adhesion betweenthe paint and the aluminum plate uniformthe colors are diverse, and the selectionspace is large.
⑤ Easy to cleanNot easy to stain, easy to clean andmaintain.The non-adhesive nature of the fluorinecoating makes it difficult for pollutantsto adhere to the surface, resulting in goodcleaning performance.
Application:
Aluminum plate is used in the following projects
1. Lighting decorations 2. Solar reflectors 3. Building appearance 4. Interior decoration: ceilings, walls, etc. 5. Furniture, cabinets 6. Elevators 7. Signs, nameplates, bags 8. Car interior and exterior decoration 9. Interior decorations: such as Photo frame 10. Household appliances: refrigerators, microwave ovens, audio equipment, etc. 11. Aerospace and military aspects, such as China's large aircraft manufacturing, Shenzhou spacecraft series, satellites, etc. 12. Mechanical parts processing 13. Mold manufacturing 14. Chemical/insulation pipe coating. 15. High-quality ship boardPacking & Delivery.

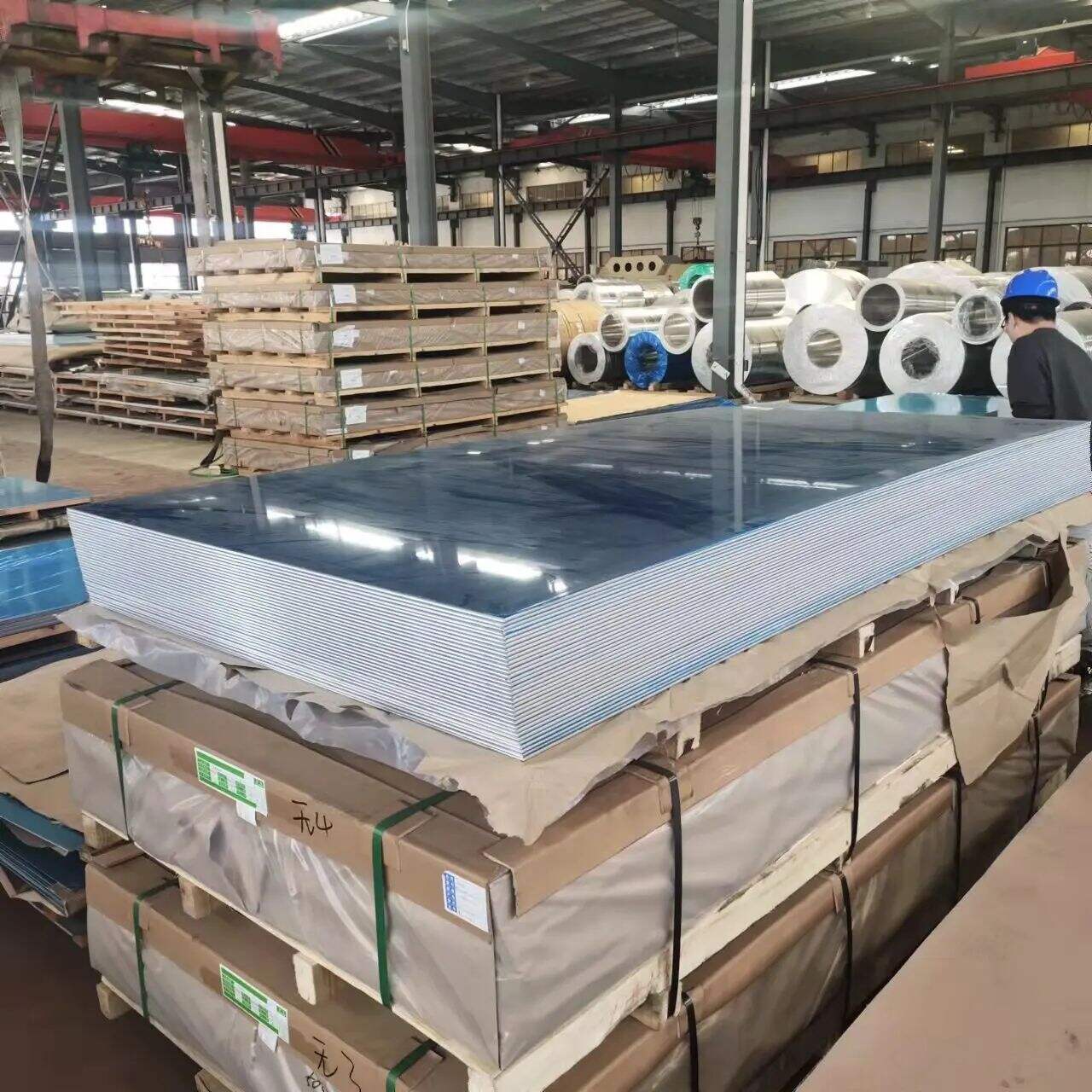

Packing & Delivery:
| PACKING | 1,Generaally package:Anti-water paper+strapped with min threestrapping strips. |
| 2,Standard exporting package:Anti-water paper and plastic+covered byiron shrrt+strapped with min three strapping strips. | |
| 3,Excellent package:Anti-water paper and plastic film+covered by ironsheet+strapped with min three strapping strip+fixed on theiron orwooden pallets by strapping strips. | |
| SHIPPING | 1,Shipping by containers |
| 2,Shipping by bulk ship | |
| As customer requirements | |
