Nickel alloy plate sheet
Nickel alloy is an alloy based on nickel and added with other elements. The Monel alloy containing about 30% copper, produced around 1905, is an earlier nickel alloy.
Nickel has good mechanical, physical and chemical properties. Adding appropriate elements can improve its oxidation resistance, corrosion resistance, high temperature strength and improve certain physical properties.
Nickel alloys can be used as materials for electron tubes, precision alloys (magnetic alloys, precision resistance alloys, electrothermal alloys, etc.), nickel-based high-temperature alloys, nickel-based corrosion-resistant alloys, and shape memory alloys.
Nickel alloys are widely used in sectors such as energy development, chemicals, electronics, navigation, aviation and aerospace.
Description
Nickel alloy is an alloy based on nickel and added with other elements. The Monel alloy containing about 30% copper, produced around 1905, is an earlier nickel alloy. Nickel has good mechanical, physical and chemical properties. Adding appropriate elements can improve its oxidation resistance, corrosion resistance, high temperature strength and improve certain physical properties. Nickel alloys can be used as materials for electron tubes, precision alloys (magnetic alloys, precision resistance alloys, electrothermal alloys, etc.), nickel-based high-temperature alloys, nickel-based corrosion-resistant alloys, and shape memory alloys. Nickel alloys are widely used in sectors such as energy development, chemicals, electronics, navigation, aviation and aerospace.
Product Parameter
| Preduct name | Niokel Alcy Plate |
| Grade |
Nickel:Nickel200/201/205Hastelloy:HastelloyB/-2/B-3/C22/C-4/S/C276/C -2000/G-35/G-30/X/N/g MastelicyB/UNS N10001,Hastelloy B-2/UNS NI0665/DON W.Nr.602,Hastelloy45HayneS:Haynes 230/554/188Inconel: Inconel 600/601/602CA/617/625/713/718/738/X-750.Carpenter 20 Inconel 718/UNS NO7718/DON W.Nc.2.4668,Inconel 601/UNSNO6601/DIN W.Nr.2. 4851,Inconel 625/UNS NO6625/DIN WN.2.4856,Inconel 725/UNS N07725, Inconel X-750/UNS NO7750/DIN W.Nr2.4669.Inconel 600/UNS NO6600/ DIN W.Nr. 2.4816 |
| Standard | GBLAISLASTH,DINENSUS.UNS etc |
| Thicknes | 0.8-36mm or Customized |
| wsath | 650-2000mm or Customized |
| Length | 0.8-6 m or Customized |
| Surface | hed.bnght.olled.hair line.brushymimocsand blast,or as required. |
| Certificates | CE.ISO,SGS.ETC |
| MOQ | 6 tom |
| deliverytime | Usually 7 days,depending on the quantity |
| Package |
Export standard package: bundied wooden box,suit for all kinds of tranaport.or be required |
| Application |
High temperature componen uide vanes, turbine dsks,hig pressurecompressor anfactri |
|
uungand combustion chambers used in the manufacture of aviation, naval and industrial gas turbines,etc |
| DIN/EN | UNS No | Generic term | Material | |
| 1 | 2.4060 | NO2000 | Nickl200 | 99Ni-0.15Fe-0.2Mn-0.1Si-0.1Cu-0.1C |
| 2 | 2.4601 | NO2201 | Nickl201 | 99Ni-0.15Fe-0.2Mn-0.1Si-0.1Cu-0.01C |
| 3 | 2.4050 | NO2270 | Nickl270 |
99.9Ni-0.02Fe-0.001Mn-0.002Si -0.005Cu-0.01C |
| 4 | 1.4980 | S66286 | INCOLOY Alloy A286 | 25Ni-15Cr-1.5Mo-2Ti-1Mg-0.03C |
| 5 | N08367 | INCOLOY Alloy 25-6HN |
25Ni-20Cr-6.3MO-0.25Cu-0.2N -0.01P-0.05S-0.01C |
|
| 6 | 1.4529 | N08926 | INCOLOY Alloy 25-6Mo |
25Ni-20Cr-6.5Mo-1Cu-0.2N -1.0Mg-0.01P-0.005S-0.01C |
| 7 | 2.4460 | N08020 | INCOLOY Alloy 20 | 36Ni-21Cr-3.5Cu2.5Mo-1Mn-0.01C |
| 8 | 1.4563 | N08028 | INCOLOY Alloy 28 | 32Ni-27Cr-3.5Mo-1Cu-0.01C |
| 9 | 1.4886 | N08330 | INCOLOY Alloy 330 | 35Ni-18Cr-2Mg-1SI-0.03C |
| 10 | 1.4876 | N08800 | INCOLOY Alloy 800 | 32Ni-21Cr-0.3~1.2(Al+Ti)0.02C |
| 11 | 1.4876 | N08810 | INCOLOY Alloy 800H | 32Ni-21Cr-0.3~1.2(Al+Ti)0.08C |
| 12 | 2.4858 | N08825 | INCOLOY Alloy 825 | 42Ni-21Cr-3Mo-2Cu-0.8Ti-0.1AI-0.02C |
| 13 | 2.4816 | N06600 | Inconel 600INCOLOY Alloy 600 | 72Ni-151Cr-8Fr-0.2Cu-0.02C |
| 14 | 2.4851 | N06601 | Inconel 601INCOLOY Alloy 601 | 60Ni-22Cr-1.2Al-0.02C |
| 15 | 2.4856 | N06625 | Inconel 625INCOLOY Alloy 625 | 58Ni-21Cr-9Mo-3.5Nb-1CO-0.02C |
| 16 | 2.4856 | N06626 | Inconel 600LCFINCOLOY Alloy625LCF | 58Ni-21Cr-9Mo-3.5Nb-1CO-0.02C |
| 17 | 2.4606 | N06686 | Inconel 686INCOLOY Alloy 686 | 57Ni-21Cr-16Mo-4W-0.01C |
| 18 | 2.4642 | N06690 | Inconel 690INCOLOY Alloy 690 | 58Ni-30Cr-9Fe-0.2Cu-0.02C |
| 19 | 2.4668 | N07718 | Inconel 718INCOLOY Alloy 718 | 52Ni-19Cr-5Nb-3Mo-1Ti-0.6Al-0.02C |
| 20 | 2.4669 | N07750 | Inconel X750INCOLOY Alloy 750 | 70Ni-15Cr-6Fe-2.5Ti-0.06Al-1Nb-0.02C |
| 21 | 2.4360 | N04400 | MONEL400 | 63Ni-32Cu-1Fe-0.1C |
| 22 | 2.4375 | N05500 | MONEL K-500 | 63Ni-30Cr-1Fe-3AI-0.6Ti-0.1C |
| 23 | 2.4819 | N10276 | Hastelloy C-276 |
57Ni-16Mo-16Cr-5Fe-4W-2.5Co -1Mn-0.35V-0.08Si-0.01C |
| 24 | 2.4610 | N06455 | Hastelloy C-4 |
65Ni-16Cr-16Mo-0.7Ti-3Fe-2Co -1Mn-0.08Si-0.01C |
| 25 | 2.4602 | N06022 | Hastelloy C-22 |
56Ni-22Cr-13Mo-3Fe-2.5Co-0.5Mn -0.35V-0.08Si-0.01C |
| 26 | 2.4675 | N06200 | Hastelloy C-2000 | 59Ni-23Cr-16Mo-1.6Cu-0.08Si-0.01C |
| 27 | 2.4665 | N06002 | Hastelloy X |
47Ni-22Cr-18Fe-9Mo-1.5Co-0.6W -0.1C-1mn-1Si-0.08B |
| 28 | 2.4617 | N10665 | Hastelloy B-2 |
69Ni-28Mo-0.5Cr-1.8Fe-3W-1.0Co -1.0Mn-0.01C |
| 29 | 2.4660 | N10675 | Hastelloy B-3 |
65Ni-28.5Mo-1.5Cr-1.5Fe-3W-3Co -3Mn-0.01C |
| 30 | N06030 | Hastelloy G-30 |
43Ni-30Cr-15Fe-5.5Mo-2.5W -5Co-2Cu-1.5Mn-0.03C |
|
| 31 | N06035 | Hastelloy G-35 | 58Ni-33Cr-8Mo-2Fe-0.6Si-0.3Cu-0.03C | |
| 32 | 1.4562 | N08031 | Nicrofer hMo31 | 31Ni-27Cr-6.5Mo-1.2Cu-2mn-0.01C |
| 33 | 2.4605 | N06059 | Nicrofer hMo59 | 59Ni-23Cr-16Mo-1.0Fe-0.01C |

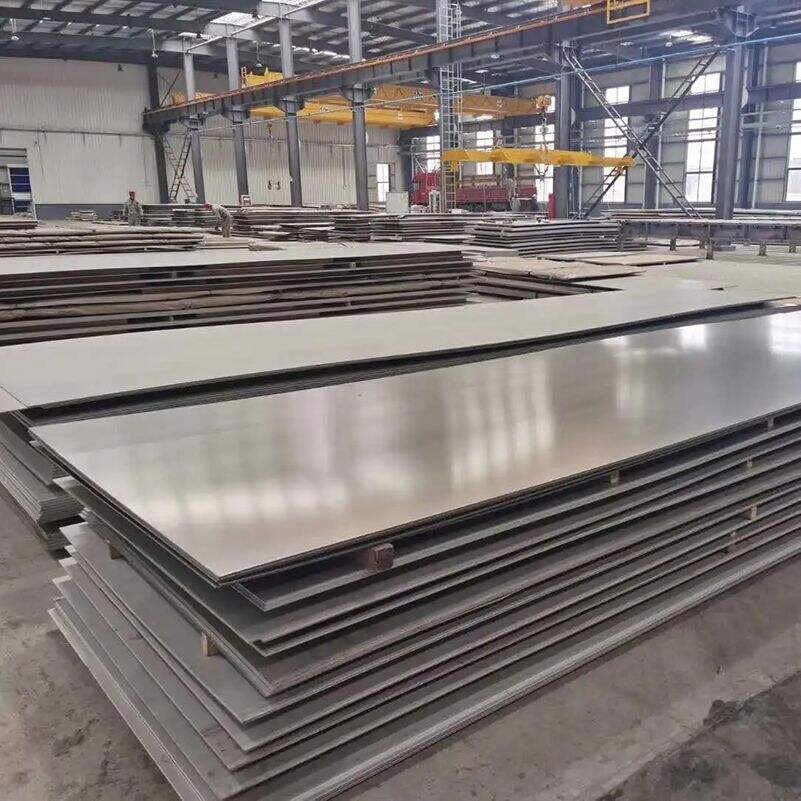

Product Show
① Nickel-based high-temperature alloy plate
The main alloying elements are chromium, tungsten, molybdenum, cobalt, aluminum, titanium, boron, zirconium, etc. It has high strength and resistance to oxidation and gas corrosion at high temperatures of 650 to 1000°C. It is the most widely used alloy with the highest high temperature strength among high temperature alloys, manufacture aero-engine blades and high-temperature components
② Nickel-based corrosion-resistant alloy plate
The main alloying elements are copper, chromium and molybdenum. It has good comprehensive performance and can resist various acid corrosion and stress corrosion. The earliest application was nickel-copper alloy, also known as Monel alloy; in addition, there are nickel-chromium alloy, nickel-molybdenum alloy, nickel-chromium-molybdenum alloy, etc. Used to manufacture various corrosion-resistant parts.
③ Nickel-based wear-resistant alloy plate
The main alloying elements are chromium, molybdenum, and tungsten, and also contain small amounts of niobium, tantalum, and indium. In addition to its wear resistance, also has good anti-oxidation, corrosion resistance and welding properties. It can be used to manufacture wear-resistant parts, as a coating material to cover the surface of other base materials through surfacing and spraying processes.
Surface treatment
Feature
①Different grades
Stainless steel has different grades, correspond to different hardness, thermoplastic, plasticity and weldability. If you don't understand, you can tell us your requirements.
②Different surfaces
Stainless steel can be customized for different surfaces, and different surfaces have different applications. For example, 8k mirrors are generally used for decoration.
③High Quality
We have more than 30 years of experience in this industry and believe that we can satisfy any demand for stainless steel raw materials.
We have a strict detection system to support three-way detection
Application
Nickel alloys can be used in the following industries:
1. Heat treatment industry. Such as furnace rollers, bell furnaces and annealing furnaces. 2. Calcining furnace. For example, it is used to calcine to produce high-performance corundum, calcine chromite to produce ferrochromium alloys, and recover nickel used as a catalyst in petrochemical industry. 3.Chemical and petrochemical industry, using it to prepare new steam cracking naphtha furnaces to produce hydrogen, etc. 4. Automation device. Such as catalytic support system, spark plug. 5. Cleaning equipment for the nuclear industry, such as nuclear waste removal. 6.Iron industry. Such as the direct reduction of iron ore process to produce titanium sponge.

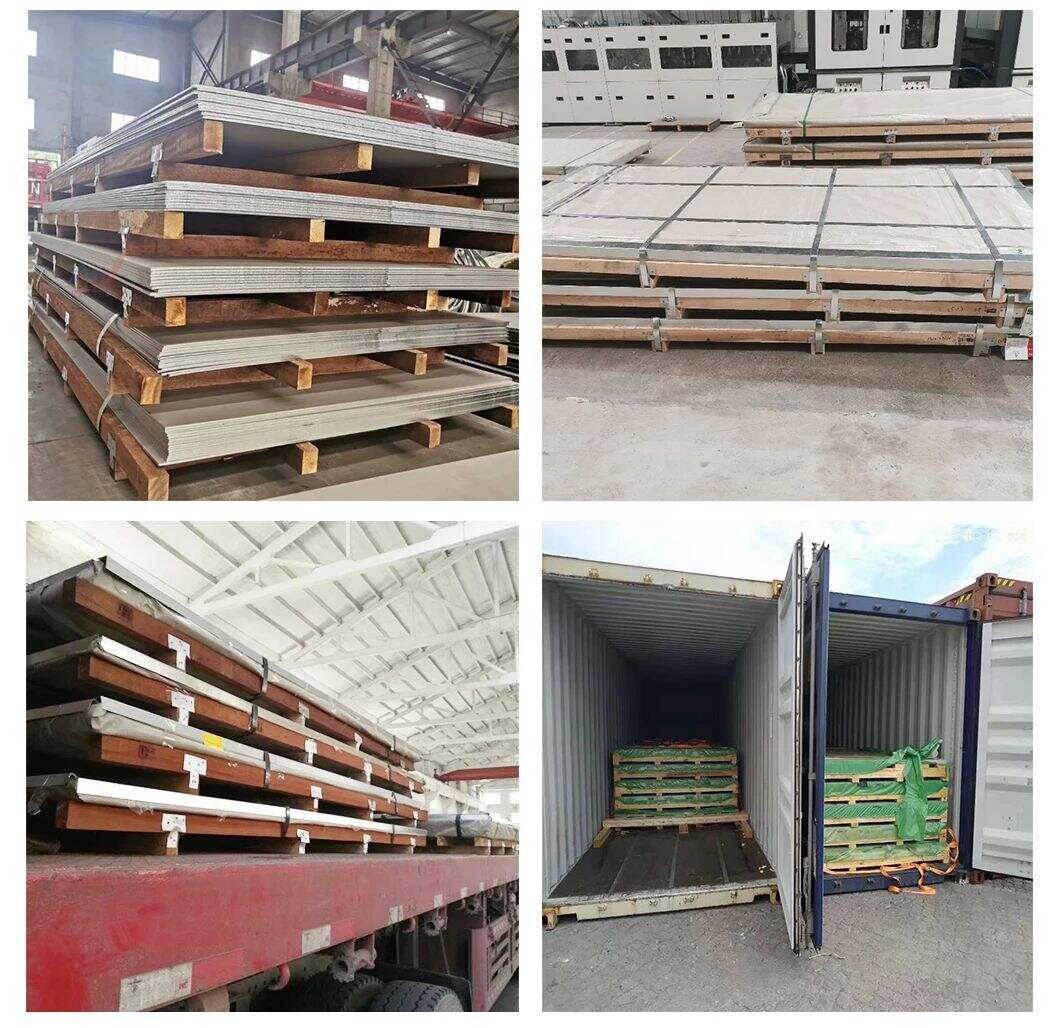

Packing & Delivery
Packaging:3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve.
Shipping:We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.
