Description
Hot rolled steel is steel that has been roll-pressed at very high temperatures—over 1,700, which is above the re-crystallization temperature for most steels. This makes the steel easier to form, and resulting in products that are easier to work with. To process hot rolled steel, manufacturers first start with a large, rectangular length of metal, called a billet. The billet is heated and then sent for pre-processing, where it is flattened into a large roll. From there, it is kept at a high temperature and run through a series of rollers to achieve its finished dimensions. Steel shrinks slightly as it cools. Since hot rolled steel is cooled after processing, there is less control over its final shape, making it less suitable for precision applications. Hot rolled steel is often used in applications where minutely specific dimensions aren't crucial.
Product Parameter
| Items | Wear resistant steel plate | Alloy steel plate | High pressure vessel steel plate | Ship steel plate | Weather resistant steel plate |
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS.EN.etc. | ||||
| Technigue | Hot rolled/ Cold rolled | ||||
| Length | 4m-12m or as required | ||||
| Width | 0.5m-3m or as required | ||||
| Thickn | 0.12mm-40mm or as required | ||||
| SurfaceTreatment | Clean,blasting and painting according to customer requirement | according to customer requirement | |||
| Thicktolerance | *0.1mm | ±0.15mm | ±0.1mm | *0.15mm | *0.1mm |
| Material | NM450L,NM4SOA,NM600,NM400,NM400LNM400A,NM500A,NH500,NM360LNM360,NB550,NM450MITTA SO0E wHardox400,Mardox450,Hardox500,Hardox 550,Hardox600,58-40,58-45.58-50 | Q345.Q345A.Q3458.Q345CQ3450,Q345E.Q235BHC340LAHC380LAHC420LAB340LA,B410LA15CRMO.12Cr1M0W20CR,40CR,65MNP RSO | Q245RLQ345RQ370R15CrMoR,15MnNDR,15Mo3,15CrMoG09MINOR12MANIVR,13MANIMOR,Gr70,18MnMoNbR,19Mn612Cr2Mo1R,12Cr1MovR.1201Mo1R,14Cr1MoR | NVA,NVD,A,A32.,A36,AH32,AH36,8.16MnLQ235.Q2358EH32,EH36CCS-A CCS-B,CCSA,CCSB,CCS,CCSD,CCSEGL-B,GL-D.GL-E,E32,E36 | 09CuPCrNI-A,09CUR, 09CuPCNIA, 09CrCuSbQ355NH,Q460NH,Q345GNHLQ345GNHL.Q355GNH,Q345GNH,Q295NH,Q295NH,Q295NH,Q310GNHQ345NH/Q235NH,QSOONH,Q23SGNH,QSSONH,Q265GNH,Q295GNH,Q45ONQR1 |
| Application | It is widely used in mininmachineryenvironmental protection machinery.to it is high wear resistanoe etc. | It is used in machine parts andengineering components,measuring | Used in tool steel,cementation steelsceretc. | It is used in make ship body,decks etc. | It can also be used in the floorrallway engineering and other outdoor steel, |
| Exportpacking | Waterproof paper,and steel strip packed.Standard Export Seaworthy Packape.Suit for all kinds of transport.or as required. | ||||
| Certification | CE.ISO.SGS.ETC | ||||
| MOQ | 1 ton | ||||
| Lead time | Usually 7 days, depending on the quantity | ||||
| payment | T/T, L/C. Western union, Paypal, DP, etc | ||||

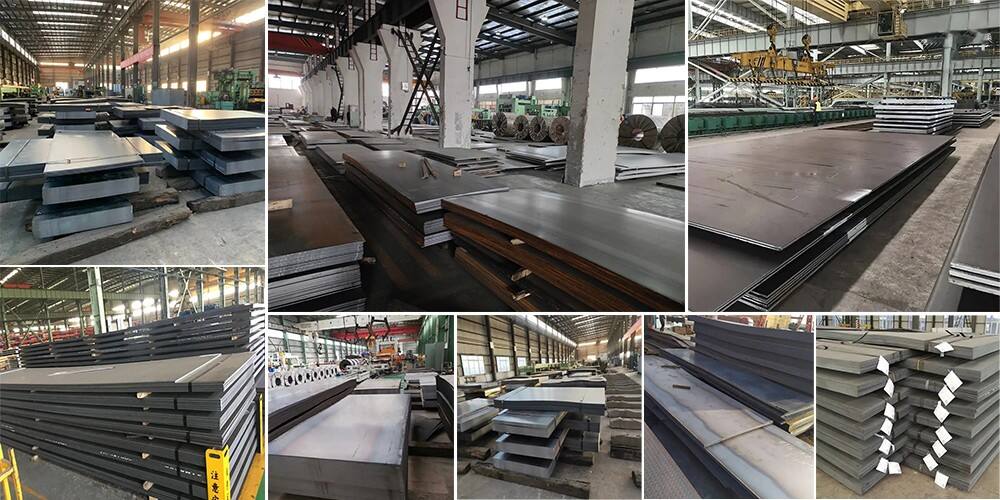

Product Show
It is a flat sheet of steel made by pouring molten steel, cooling and pressing. The steel plate is divided according to thickness, the steel plate<4 mm (the thinnest 0.2mm), mediumthick steel plate 4-60 mm, extra thick steel plate 60-115 mm. The steel plate is divided into rolling, hot rolling and cold rolling. The width of the sheet is 500~3000 mm; The thick width is 600~3000 mm. There are common steel, high quality steel, alloy steel, spring steel, stainless steel, tool steel, heat-resistant steel, bearing steel, silicon steel and industrial pure iron sheet. According to professional use, there are oil barrel board, enamel board, bulletproof board and so on; According to the surface coating layer, galvanized sheet, tin plate, lead plate, plastic composite plate.
Product Advantage
①HIGH PERFORMANCE
Smooth surface,excellent corrosionresistance & high heat resistance&adequate zinc layer
②HIGH QUALITY
Best raw materials for productionadvanced technologies and thoroughinspection system
③CUSTOMIZABLE SURFACE
Perfect Painting & beautifulappearance customize yourdifferent needs
We have a strict detection system to support three-way detection
Chemical Composition
| Steel grade | C | Si | Mn | P | S | Als |
| Grade AH36 | ≤0.18 | ≤0.50 | 0.9-1.6 | ≤0.035 | ≤0.035 | 20.015 |
| Grade DH36 | ≤0.18 | ≤0.50 | 0.9-1.6 | ≤0.035 | ≤0.035 | 20.015 |
| Grade EH36 | ≤0.18 | ≤0.50 | 0.9-1.6 | ≤0.035 | ≤0.035 | ≥0.015 |
| Grade FH36 | ≤0.18 | ≤0.50 | 0.9-1.6 | ≤0.035 | ≤0.035 | ≥0.015 |
Mechanical Properties
| Steelgrade | Yieldpoint/MPa | Tensilepoint/MPa | Elongation/% | Temperature/°C | V-type impact test | ||
| Akv/J | |||||||
| ≤50MM | 50-70MM | 70-100MM | |||||
| GradeAH36 | ≥355 | 490-630 | ≥21 | 0 | 34/24 | 41/27 | 50/34 |
| GradeDH36 | 2355 | 490-630 | ≥21 | -20 | 34/24 | 41/27 | 50/34 |
| GradeEH36 | 2355 | 490-630 | 221 | -40 | 34/24 | 41/27 | 50/34 |
| GradeFH36 | ≥355 | 490-630 | ≥21 | -60 | 34/24 | 41/27 | 50/34 |
Carbon steel manufacturing process:
The smelting of carbon steel is usually carried out in converter and open hearth. Converters generally smelt ordinary carbon steel, while open furnaces smelt all kinds of high-quality steel. The technology of oxygen top blow converter is developing rapidly and it can replace open hearth furnace. The refined liquid steel is injected into the ingot mold to obtain various ingot. After the ingot is forged or rolled, it is processed into plates, strips, bars, and sections of various sectional shapes. Carbon steel is usually used directly in the hot rolled state. When used for manufacturing tools and various machine parts, it needs to be heat treated according to the requirements of use; As for steel castings, most of them are heat-treated.
Application
Application of carbon steel plate
1.Construction field:Carbon steel plates are often used in the manufacture of building structures, such as steel frames, steel beams, etc. Due to the high strength and plasticity of carbon steel plate, it can withstand large loads, so the widely used in construction.
2.Automobile manufacturing:carbon steel plate is an important material for manufacturing automobile body and frame. carbon steel tool It has good plasticity and welding performance, which can meet the requirements of automobile manufacturing.
3.Home appliance manufacturing:Carbon steel plates are often used in the manufacture of home appliances, such as refrigerators and washing machines.The carbon steel plate can be made into parts of different shapes through the stamping process to meet the needs of home appliances need.
4.Shipbuilding:Carbon steel plates are also widely used in shipbuilding. Due to the carbon steel tool Good plasticity and welding performance can meet the requirements of ship structure.
5. In other fields, carbon steel plates are also widely used in machinery manufacturing, petrochemical, metallurgy and other fields. area.
Packing & Delivery
Packaging:3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve.
Shipping:We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.
